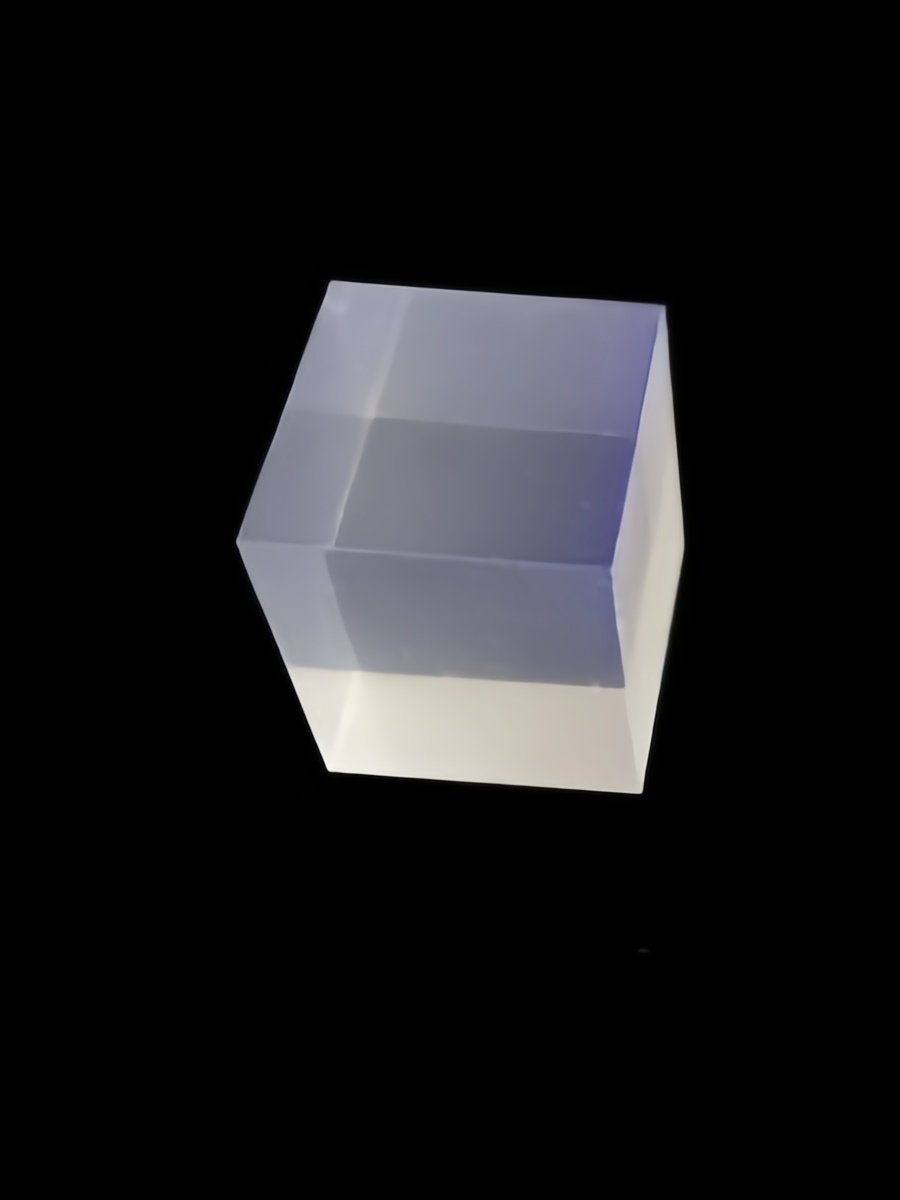

Cesium Iodide doped with Thallium, commonly known as CsI(Tl), is one of the most widely utilized scintillator materials globally. Renowned for its exceptionally high light yield and optimal emission spectrum, CsI(Tl) is a cornerstone material for both commercial and scientific radiation detection systems. ATR Crystal stands at the forefront of advanced crystal growth, providing industry-leading CsI(Tl) scintillator ingots, arrays, and customized detector solutions designed for the most demanding applications.
Key Properties and Advantages of CsI(Tl)
The physical and optical characteristics of CsI(Tl) make it an irreplaceable component in modern detection technology:
Unmatched Light Yield: Producing approximately 54,000 photons/MeV, CsI(Tl) offers one of the highest light outputs among solid-state scintillators, ensuring brilliant signal generation even at low radiation doses.
Perfect Photodiode Match: Its broad emission spectrum peaks at around 550 nm. This matches perfectly with the spectral sensitivity of standard Silicon Photodiodes (SiPDs) and Silicon Photomultipliers (SiPMs), allowing for compact, photomultiplier-tube-free detector designs.
Excellent Mechanical Properties: Unlike highly brittle materials, CsI(Tl) is relatively plastic, allowing it to withstand severe mechanical shock and vibration, making it ideal for harsh industrial environments and aerospace applications.
Cost-Effective Scaling: ATR Crystal’s optimized Czochralski growth method allows for the production of large-volume ingots, making it a highly cost-effective solution for large-scale detector arrays.
Technical Specifications
| Parameter | ATR Crystal Typical Specifications |
| Density (g/cm³) | 4.51 |
| Emission Peak Wavelength (nm) | 550 |
| Light Yield (photons/MeV) | ~ 54,000 |
| Decay Time (μs) | 1.0 (typical) |
| Energy Resolution (@ 662 keV) | < 7.0% |
| Hygroscopic | Slightly (Requires encapsulation) |
Advanced Applications Powered by CsI(Tl)
The unique combination of high light output and photodiode compatibility allows ATR Crystal CsI(Tl) crystals to power a diverse range of critical industries:
Security & Cargo Inspection: The industry standard for X-ray baggage scanners and large-scale cargo inspection systems at ports and borders. ATR Crystal provides customized linear arrays perfectly tailored for dual-energy X-ray imaging.
Medical Imaging: Widely utilized in specific configurations of CT (Computed Tomography) scanners and bone densitometry equipment where precise radiation measurement is critical.
Nuclear Physics & Space Exploration: Employed in charged particle detectors and high-energy physics calorimeters due to its high stopping power and ruggedness.
Industrial Non-Destructive Testing (NDT): Used in thickness gauging, level measurements, and pipeline inspection tools.
The ATR Crystal Advantage: Precision, Purity, and Packaging
While CsI(Tl) is highly effective, it is slightly hygroscopic. ATR Crystal addresses this challenge through comprehensive, vertically integrated manufacturing:
Proprietary Encapsulation: We utilize advanced, low-profile reflective materials (such as TiO2 or white epoxy) and hermetic sealing techniques (aluminum or specialized resins) to ensure long-term stability and prevent degradation from humidity.
Custom Array Assembly: Beyond raw ingots, ATR Crystal engineers build highly precise 1D and 2D pixelated arrays, complete with optical coupling to your specified photodiode requirements.
Rigorous Quality Control: Every crystal undergoes strict spectral testing to guarantee uniform light output and energy resolution before leaving our facility.
Partner with ATR Crystal for Your Next Project
Whether you are designing the next generation of airport security scanners or specialized medical devices, the quality of your scintillator dictates the performance of your entire system.
[Download the CsI(Tl) Technical Data Sheet (PDF)] or [Contact ATR Crystal Today] to consult with our materials engineering team about custom sizes, array configurations, and high-volume OEM supply.
Scientific References and Data Sources
(For further reading on the physical properties and applications of CsI(Tl), please refer to the following authoritative databases)
[1] Particle Data Group (PDG): Atomic and Nuclear Properties of Materials – pdg.lbl.gov
[2] IEEE Xplore Digital Library: Advancements in CsI(Tl) Scintillator Arrays for X-Ray Imaging – ieeexplore.ieee.org
[3] National Institute of Standards and Technology (NIST): X-Ray Mass Attenuation Coefficients – nist.gov
