Next-Gen GAGG(Ce) Scintillators & Custom Arrays
Gadolinium Aluminum Gallium Garnet (GAGG:Ce) is a breakthrough detection material engineered for high-end CT and security equipment. It delivers exceptional light output and a short decay time, paired with a critically low radioactive background.
- Ultimate Stability: Strictly non-hygroscopic with no cleavage planes, ensuring highly precise processing and assembly.
- High Performance: High density for uncompromised radiation detection and high-energy physics applications.

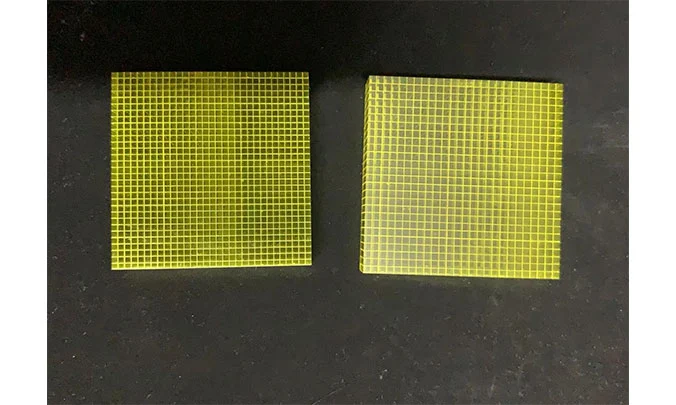

- Custom Configurations: Supplying premium standalone GAGG(Ce) crystals, ultra-thin scintillation screens, and custom 2-D arrays.
ATR Crystal GAGG(Ce) Scintillators
Description
Parameter
Description
Application of GAGG(Ce) Scintillators (GAGG:Ce Scintillators)
Gamma-ray detection
X-ray medical imaging
High energy physics
Positron Emission Tomography-Computed Tomography(PET-CT)
Single photon emission computed tomography(SPECT)
Advantages of GAGG(Ce) Scintillators (GAGG:Ce Scintillators)
High light output
High energy resolution
Fast decay time
No background
No hygroscopy
The Ability of ATR Crystal
Maximum Size: ɸ60mm x 200mm
Available items: monolithic crystal, scintillation screen, pixellated array
Scintillation Screen Design Options of GAGG(Ce) Scintillators (GAGG:Ce Scintillators)
Freestanding ultra-thin scintillation screen.
Ultra-thin scintillation screens can be coupled to a substrate with optical adhesives in order to achieve better optical readout.
Scintillation screens can be inserted into frames(Aluminum or Stainless steel) for easier manipulation.
We can provide customized marking such as a grid, cross, or scale on the surface of the screen for easier beam visualization.
We can provide various coating on the surface of the screen upon request, such as reflection coatings(Al, Au, Ag, etc.), AR coating, diffusion painting(TiO2, Al2O3), and conductive coatings(Al, ITO, C).
Parameter
Different Types of GAGG(Ce) Scintillators (GAGG:Ce Scintillators)
| Type | Light yield | Decay time | Afterglow |
|---|---|---|---|
| High light output type | 54000 photons/keV | <150 ns | ≤0.10%@20ms |
| Low afterglow type | 45000 photons/keV | <70 ns | ≤0.02%@20ms |
| Fast decay time type | 30000 photons/keV | <50 ns | ≤0.10%@20ms |
| Balanced type | 42000 photons/keV | <90 ns | ≤0.10%@20ms |
Properties of GAGG(Ce) Scintillators (GAGG:Ce Scintillators)
| Product Type | High light output type | Low afterglow type | Fast decay time type | Balanced type |
|---|---|---|---|---|
| Scintillation decay time (ns) | ＜150 | ＜70 | ＜50 | ＜90 |
| Emission peak wavelength (nm) | 520 | 520 | 520 | 520 |
| Refractive index (peak wavelength) | 1.9 | 1.9 | 1.9 | 1.9 |
| Density (g/cm3) | 6.6 | 6.6 | 6.6 | 6.6 |
| Light yield (photoelectron /keV) | 54 | 45 | 30 | 42 |
| Energy resolution ( 137Cs) (5x5x5 mm) | 6% | 6% | 7% | 6% |
| Radiation hardness (rad) | 10^5 | 10^5 | 10^5 | 10^5 |
| Crystal structure | Cube | Cube | Cube | Cube |
| Cleavage plane | No | No | No | No |
| Hygroscopic | No | No | No | No |
| Mohs hardness | 8 | 8 | 8 | 8 |
| Afterglow | ≤0.10%@20ms | ≤0.02%@20ms | ≤0.10%@20ms | ≤0.10%@20ms |
