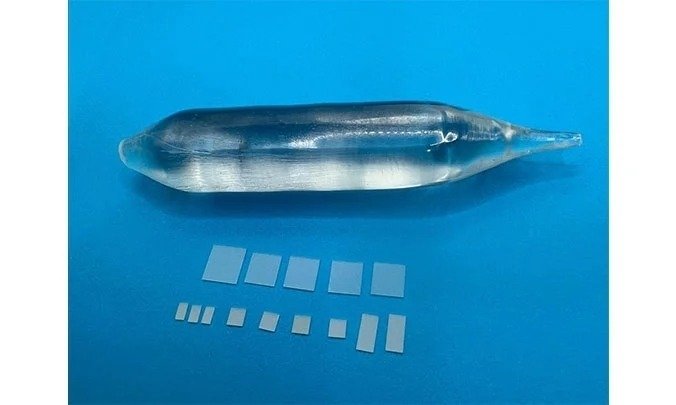

High-Performance YAP(Ce) Crystals & Custom Imaging Screens
Engineered for exceptional structural stability and high thermal conductivity, our YAP(Ce) scintillators (Ce:YAlO3) are designed to thrive in the most demanding and harsh operating environments. Delivering a rapid 28ns decay time and robust light yield, its specific 350-390nm emission spectrum is perfectly optimized for seamless integration with standard PMTs and silicon photodiodes (PD). Whether you require precision-cut crystals or custom YAP(Ce) scintillation screens, ATR Crystal provides versatile design options to empower your next-generation CT systems, electron microscopy, and high-energy X-ray counting applications.
ATR Crystal YAG(Ce) Scintillators
Description
Parameter
Description
Application of YAP(Ce) Scintillators (Ce:YAP Scintillators)
Gamma, X-ray counter
X-ray imaging screens
Electron imaging screens
Ion beam imaging
Scanning electron microscope(SEM)
Advantages of YAP(Ce) Scintillators (Ce:YAP Scintillators)
High density
Stable physical and chemical properties
Fast decay time
No hygroscopic
No cleavage planes
High-temperature resistance
The Ability of ATR Crystal
Maximum Size: ɸ50mm x 160mm
Available items: monolithic crystal, scintillation screen
Scintillation Screen Design Options of YAP(Ce) Scintillators (Ce:YAP Scintillators)
Freestanding ultra-thin scintillation screen.
Ultra-thin scintillation screens can be coupled to a substrate with optical adhesives in order to achieve better optical readout.
Scintillation screens can be inserted into frames(Aluminum, Stainless steel) for easier manipulation.
We can provide customized marking such as a grid, cross or scale on the surface of the screen for easier beam visualization.
We can provide various coating on the surface of the screen upon request, such as reflection coatings(Al, Au, Ag, etc.), AR coating, diffusion painting(TiO2, Al2O3), and conductive coatings(Al, ITO, C).
Parameter
Properties of YAP(Ce) Scintillators (Ce:YAP Scintillators)
| Density(g/cm3) | 5.4 |
|---|---|
| Emission Spectral Range (nm) | 325-425 |
| Refractive index at peak emission | 1.95 |
| Emission Peak (nm) | 370 |
| Melting Point (℃) | 1875 |
| Decay time (ns) | 28 |
| Light Yield (photons/KeV) | 25 |
| Radiation Length (cm) | 2.7 |
| Hygroscopic | No |
| Cleavage plane | No |
| Hardness (Mho) | 8.5 |
