The Process: Precision at High Temperature

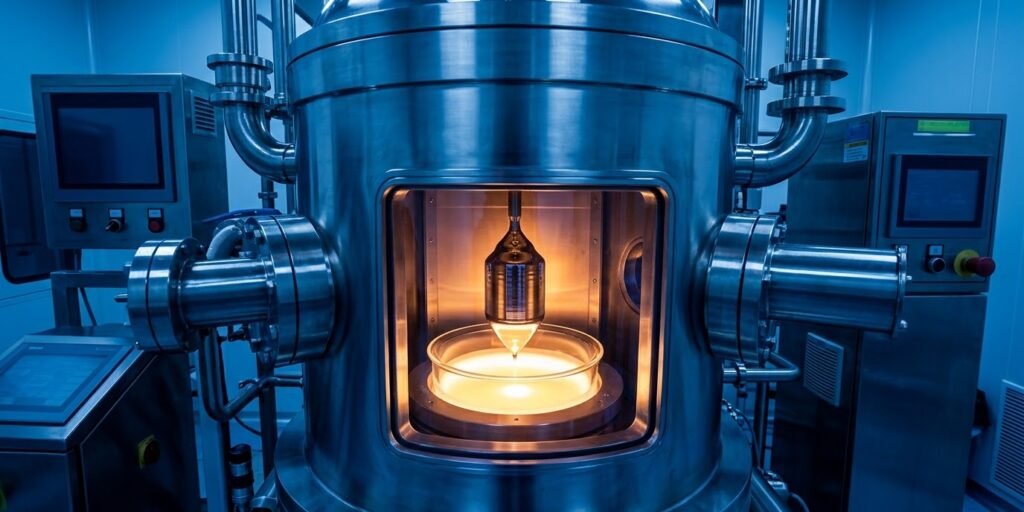

The Cz method is a sophisticated pull technique. It begins with melting high-purity polycrystalline silicon in a quartz crucible, typically heated by a graphite heater under an inert gas atmosphere. A precisely oriented seed crystal is lowered until it just touches the molten silicon. The temperature is meticulously controlled, allowing a small amount of the melt to solidify on the seed. The seed crystal is then slowly rotated and pulled upwards. The pull rate and temperature determine the final crystal diameter. This entire crystal growth process requires extreme precision in thermal and mechanical control to avoid dislocations and impurities in the forming Cz-silicon.
Advantages of Czochralski Single Crystals
Monocrystalline silicon produced via the Cz method offers unique monocrystalline silicon properties:
High Purity: The process inherently allows for excellent control of oxygen and carbon impurities.
Large Diameters: Modern industrial crystal manufacturing can produce Cz-silicon ingots exceeding 300mm in diameter, essential for modern semiconductor fabs.
Process Stability: It is a mature, stable process capable of producing consistent material quality, crucial for scaling production in the semiconductor silicon market.
As technology progresses, the scaling up of large-diameter crystal growth poses new engineering challenges, demanding even more sophisticated furnace designs and process monitoring systems.
